Service design

Automating communication for low-literate and offline workers

hero

Brand

mauqa online

Summary

Translating native mobile app functionalities onto feature phone's capabilities using automated voice calling.

My role

  • Service design
  • User research
  • Product strategy
  • User testing
  • Product sprints

Credits

Special thanks to Talha Qazi for supporting me with testing and implementation.

Problem statement

Mauqa Online is an on-demand domestic help service. Whenever a customer books a service, they are connected to a blue-collar worker. For getting a worker to a customer, we relied on a call centre to execute all booking operations. The call centre operator would manually call each worker to convey or collect information such as schedules, reminder, arranging rides, punching booking start and end times.

25%
of workers have a smartphone
60%
of workers are illiterate

We have a worker mobile app but its adoption is small because of the above two figures. This restricted us to using voice through calls. The reliance on manually calling up workers was really costly and limited us to a certain number of bookings per day. So automating communication became a business necessity to scale, rather than to just increase productivity.

On average, an operator was calling up a worker 15 times per booking

Hypotheses for solution

I started with documenting the communication process that was followed for each booking. Using historic data, I then categorized it into either Outbound Communication (initiated by operators) or Inbound Communication (initiated by worker).

  • Outbound: Reminders about upcoming bookings, ride details, customer address, booking assignment, cash deposit reminders
  • Inbound: Recording start and end time of a booking

For some outbound communication, a response was required from the worker as well, such as accepting a new booking.

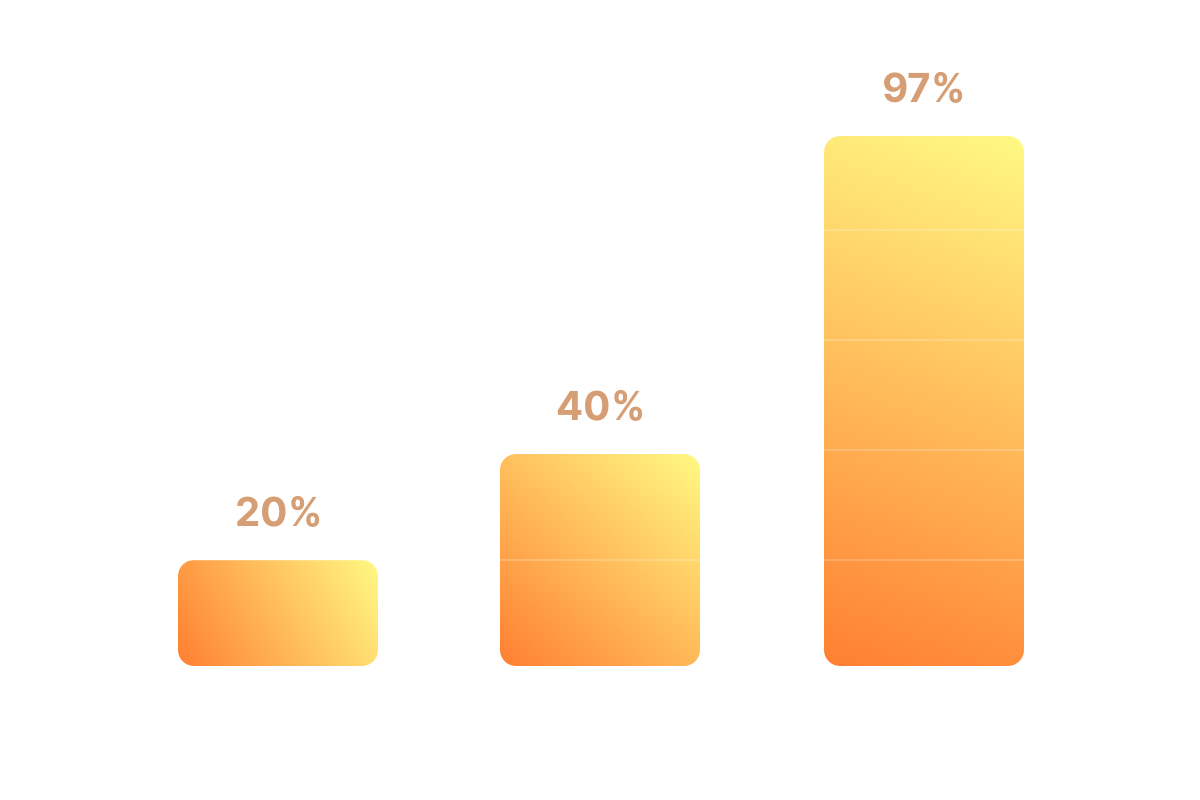

Next I created a basic literacy survey for a 100 workers. It was found that 20% could read Urdu in Roman format, 40% could read Urdu in native script and 97% could read numbers.

worker survey
The survey highlighted that there was no one way to define literacy and reading numbers was more common than we had expected

This identified that textual channels such as SMS could be used to convey one-way information containing just numbers. This also led to the conclusion that if we were to automate any communication, the medium would have to be voice.

call center
Multiple visits were made to the call center where Talha Qazi (in photo) and I 'shadowed' and surveyed how operators performed each task

Automating communication

Validating Voice

For voice, a 3rd-party voice campaign software by Telenor was used as a MVP. To see if workers could understand and respond to 'Robocalls', I pre-recorded some booking reminders. These were initiated manually by our operators and the worker's response was recorded using either 1 or 2 keypress on their phone's dial-pad.

Translation: 'This a recorded call from Mauqa Online. Your ride will arrive at the stop in exactly 30 minutes. If you are available for this job, press 1. If you are unavailable for this job, press 2. A penalty will be added if you do not perform this job.'

The adoption for Robocalls was slow at start, but with a few iterations, the response rate rose to 90%. This validated our hypothesis that automating voice calls could be an effective channel.



Validating SMS

Next, to test out SMS, I started sharing worker's ride details via SMS, rather than over a call. This included the registration number of their vehicles. All of the workers was able to match the number plates using the numbers in the text. This validated the hypothesis that SMS could be used to convey familiar information as long as it follows a template.

text message

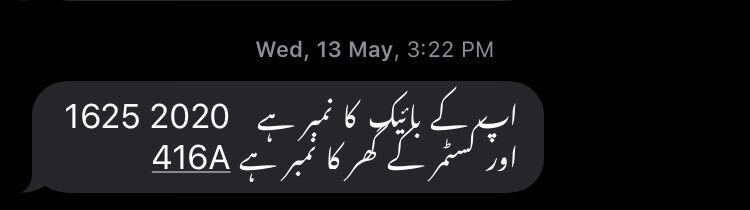

An automatic text message containing ride's registration number and the customer's unit number.

Automating Inbound and Outbound

With these 2 channels validated, I used a 3rd-party software, Infobip. I used their Text-to-Speech functionality to convert roman urdu text to pre-recorded audio. This saved us the hassle of recording all audio in advance and fine tune easily. We integrated their APIs to our backend, so that a worker's response could be recorded directly to our database.

flow

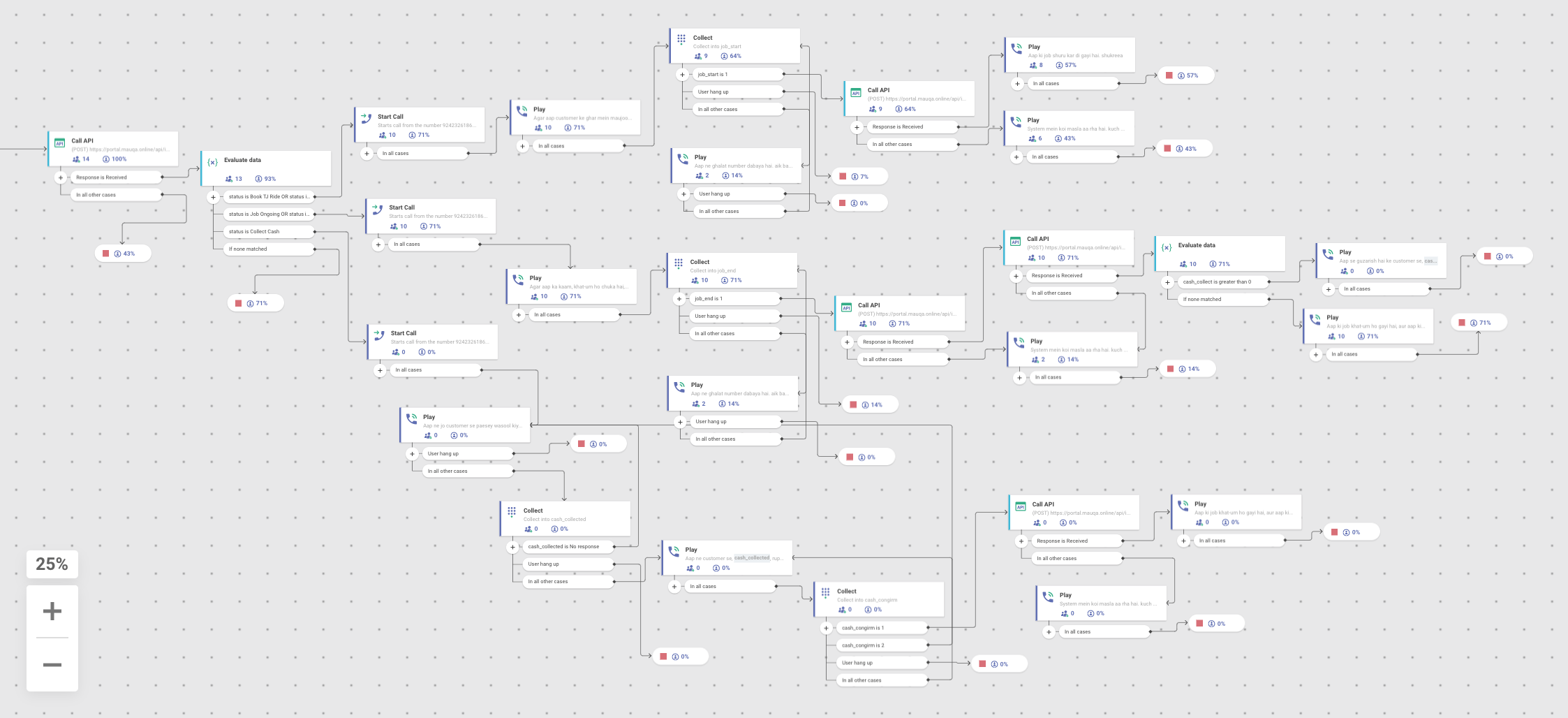

One of the many 'flows' I made using Infobip

In Infobip, I created complex decision trees called 'Flows' to cater to major use-cases for each communication. If a worker selected a wrong option or dropped the call, etc. there was always an 'if-else' condition added as a fallback.

Translation: 'This a recorded call from Mauqa Online. You have been assigned a job for which you will have to come to the stop at 8:45. If you want to do this job, press 1 and if you don't want to, press 2.' Sample of a recording created using text-to-speech for a fairly accurate pronounciation in Urdu

Summary of automations

  • For all 2-way outbound communication, I used automated Robocalls to inform workers and gather their responses.
  • For all 1-way outbound communication, I used SMS to convey simpler information.
  • For inbound communication, I setup an Interactive Voice Response (IVR) system on a phone number. A worker sends a misscall at this number and receive an automated call back. This way the calling costs were not put on the worker.

Results and Learning

Although the plan was to roll out features one by one, but the COVID-19 pandemic forced us to launch features sooner. We reduced our operator count from 9 down to just 1. Luckily for us, the automation was able to support the operator in handling most of the workload.

Automating these recurring calls saved us thousands of dollars of a call center charges each month

For me, automating these multiple processes was as complex an undertaking as it was not just a challenge on the technological front. It required an understanding of the worker's comprehension, constraints and behaviour.

One example for this would be that even though information was conveyed clearly over call, most of the workers were not familiar with the concept of pressing the keypad to record a response. This was then added to their training later.



The key takeaway from this project is that to automate any process, it is crucial that it is refined and validated. If the process does not work 20% of the time, it will compound when automated and increase your headache by 200%.
